EDINGMX980 multi-function logistic Drone

    Product Introduction

    Introduces the multi-function logistics UAV to solve low-altitude distribution services such as short-distance, small-batch,multi-frequency and emergency in the end city.  Our product are equipped with high-precision RTK to achieve centimeter-level positioning.With a maximum load of up to 5KG and a distribution radius of up to 8KM, it is specially designed to meet short-distance emergencies.


    The drone is specially equipped with laser obstruction avoidance modules in the front and below, and also equipped with aerial lighting, which can be easily flown even in a no-light environment. The dual combination effectively solves the failure of avoiding obstacles caused by insufficient light at night or mirror reflection.


     In the high air operation, in order to solve the problem of noise reduction, the bottom built-in high volume loudspeaker, with noise reduction better to achieve high volume and clear sound transmission, the volume is as high as 120 decibels.




    MX980 flexible and convenient, the arm and blade can be folded for storage, whether it is transportation or storage, can be more suitable for all kinds of scenes. Change the logistics box, detachable tripod to change the form.

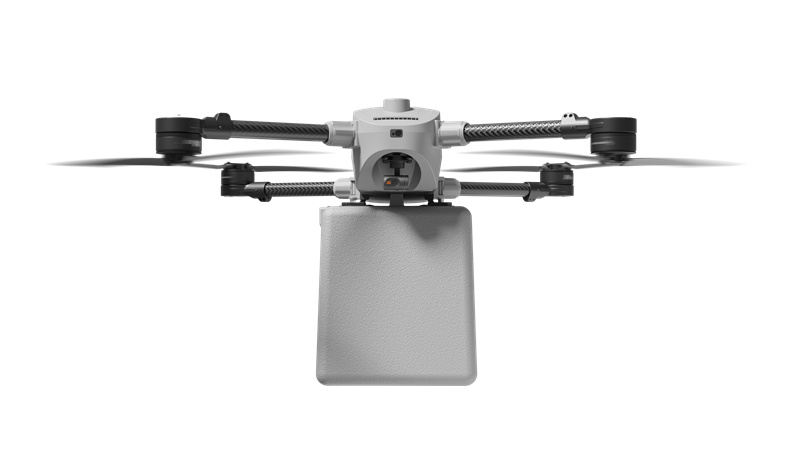

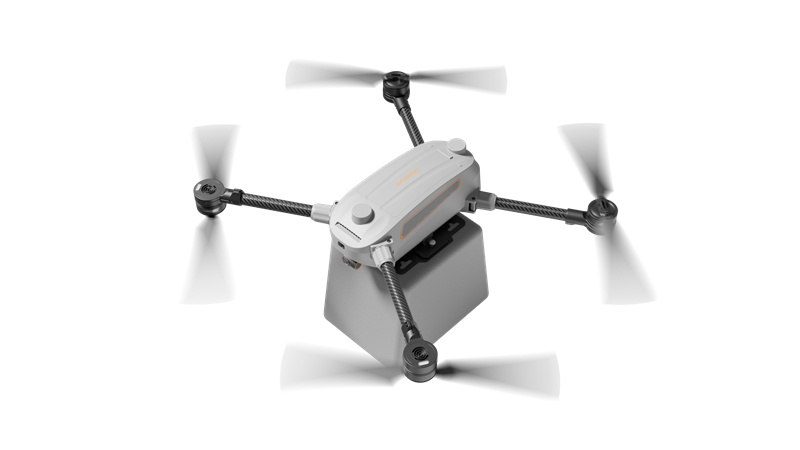

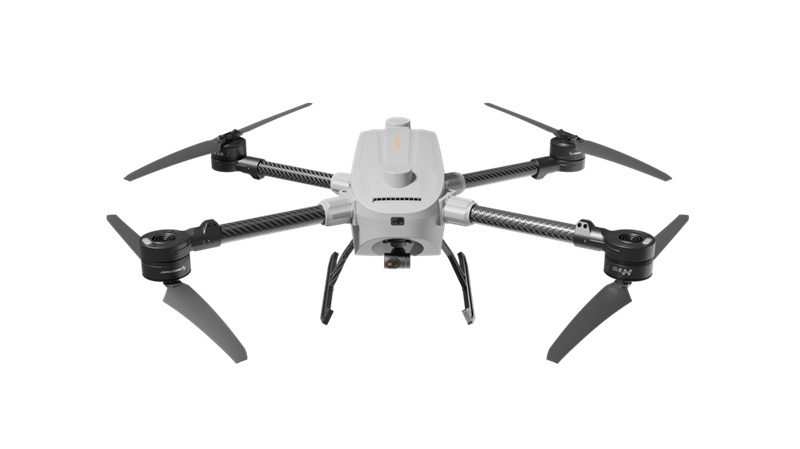

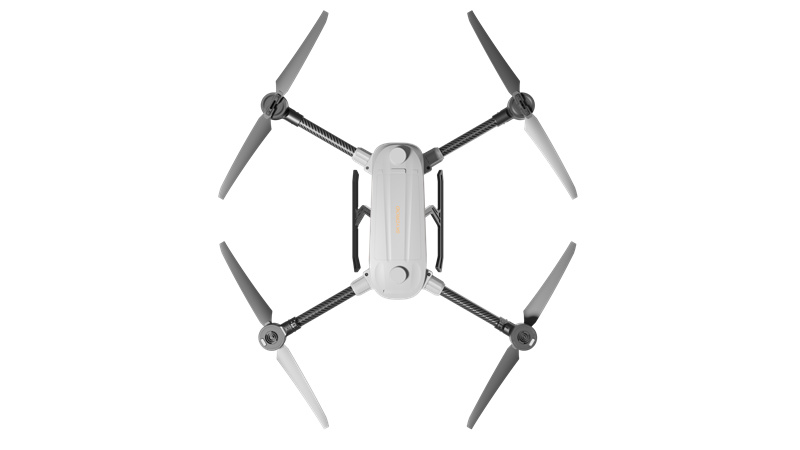

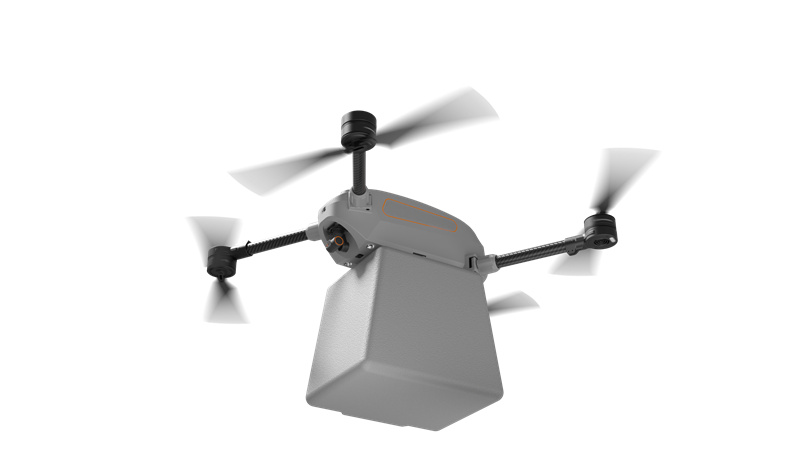

    Product images

    0c3d88e3f225a2f82510f754bb61738d2daeb34c0f78d595c45293baeaab38

    Specifications

    Machine weight (no battery)  4.82kg
    Machine size(length * width 8height)
    73.5cm*69cm*28cm
    Folding size( L*W*H)
    36cm*41.5cm*28cm
    Blade type  2270
    Diagonal wheelbase 92cm
    Input voltage 12S(50.4V)
    Battery capacity
     22000mAh
    Battery weight
    3.66kg
    Maximum take-off weight 13kg
    Maximum load capacity
    5kg
    Control Range(no load) 30KM
    Control Range
    15KM
    Maximum ascent speed
    3m/s
    Maximum descent speed 1.5m/s
    Maximum horizontal flight speed
    12m/s
    No-load endurance
    60min
    Full load endurance:(5KG)
    30min
    Working ambient temperature
    0-45℃
    Operating frequency
    2.4G/4G
    Radio frequency power
    Up to 24dBm
    Hover accuracy
    Autonomous:2.0m
    CEPDGNSS
    0.5mCEP,RTK:2cm+1ppm
