High-building cleaning drone EDING X100

The X100 is equipped with a high-pressure cleaning spray gun to carry out intelligent and efficient cleaning of the exterior walls of tall buildings

While improving efficiency, it effectively avoids possible dangers in the manual cleaning process.

details

Show

Product Introduction

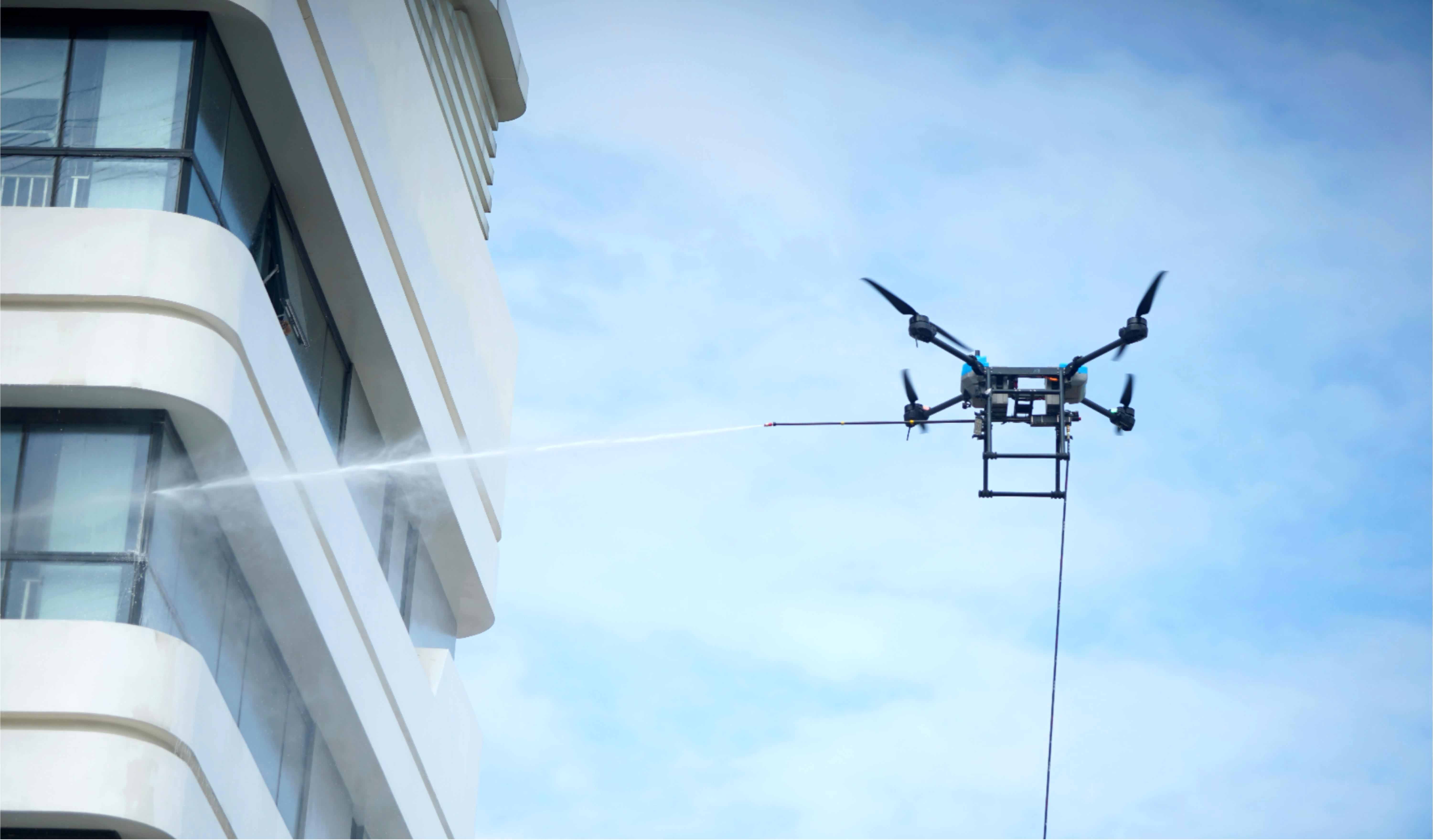

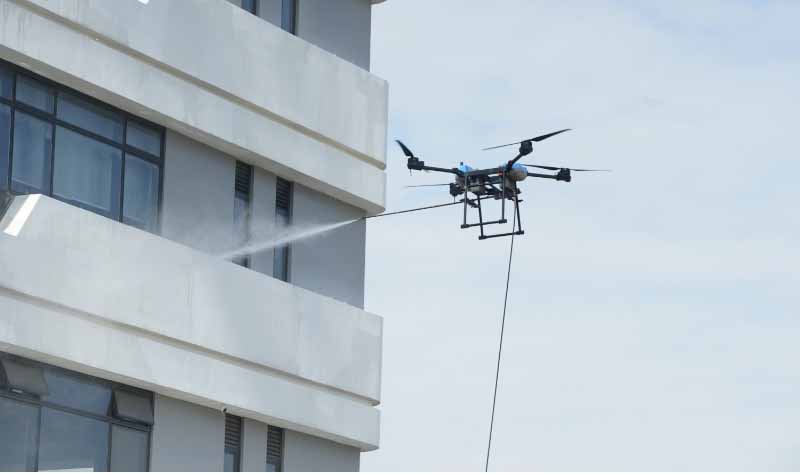

The X100 is equipped with a high-pressure cleaning spray gun to carry out intelligent and efficient cleaning of the exterior walls of tall buildings

While improving efficiency, it effectively avoids possible dangers in the manual cleaning process.

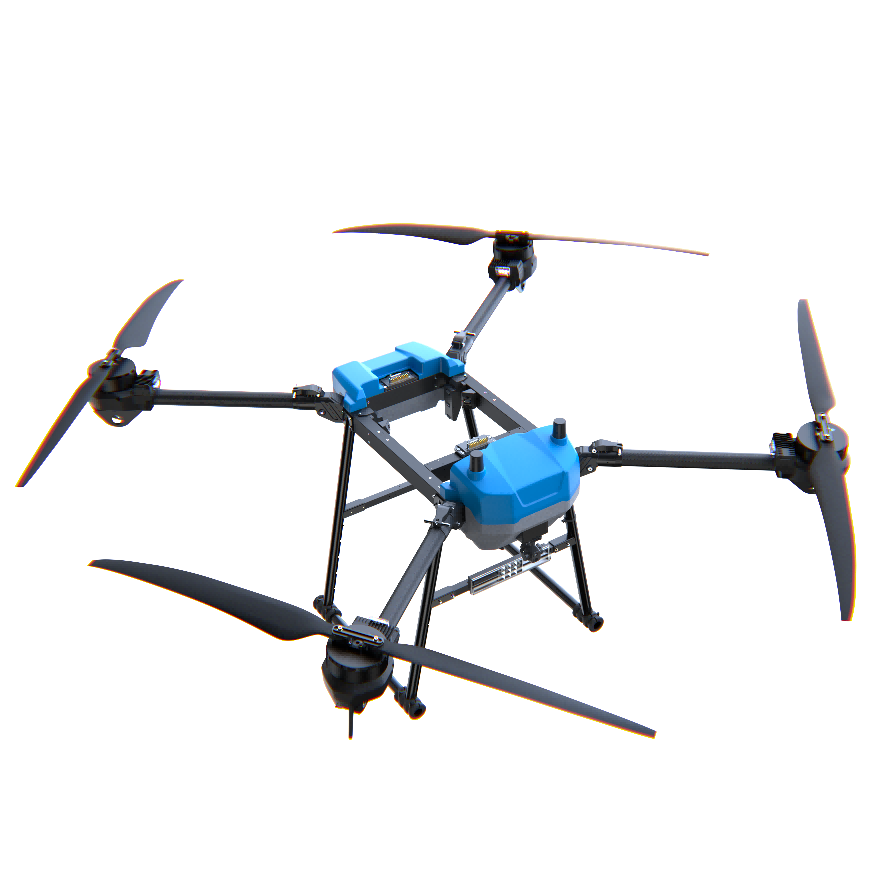

X100 with AG6 flight control system, integrated integration of multiple modules, rich peripheral interfaces, multiple hardware protection, modules simple and clear, complete functions, stable and durable; High robust control algorithm, stable and smooth flight.

Support for two signal drive power systems, with reliable interference performance, and power data recording function

Unique shock absorption design and filtering algorithm, high vibration adaptability, more adaptable model

No need to wait for star search, large capacity UPS, hot start of the system, no need to wait for star search, immediately enter the operation after changing the battery

Equipped with high-definition intelligent identification camera, quick inspection of the community, the roof of the factory, high-rise situation at a glance; Greatly improve the efficiency of investigation, in order to remove safety hazards and illegal buildings in the first time

Equipped with a variety of nozzles to meet different cleaning scenarios, such as 0° nozzle: to remove stubborn stains, 15° nozzle: to remove more stains, 25° nozzle: large range rinse, 40° nozzle: spray foam

Product images

Specifications

Rated load	50kg
Maximum load	52kg
Empty weight	55kg
Rated takeoff weight	105kg
Transport size	10548341120mm
Machine size	172517551075mm
No-load hover time	18min15s
Full load hover time	7min30s
Flight altitude	≤200m
Flight distance	≤15km
Charging time	9min
Battery weight	4/13.5kg
Battery capacity	30000mAh
Battery size	175mm x 275mm x 309mm
Battery string	185
Nominal voltage	68.4V
Signal effective distance (open ground)	1200-1500M
Built-in battery	3.7V 2S lithium 20000mAh
Number of channels	12
Operating temperature	-10°C~55°C
Storage ambient temperature	-20°C to 70°C
Battery life	8-12H
Injection flow rate	15-20L/min
Spray distance	≤10m
Injection pressure	Max 500Bar
Cleaning efficiency	2000 square meters/hour
Ground power supply	220V/110V
Pump size	754077CM
Rated power	3000W
Water pipe material	ultra light nylon high pressure pipe
Pipe length	≥30 meters
Spray rod length	2 meters
Pipe diameter	6mm
Injection flow rate	20-25L/min
Spray distance	≤10m
Injection pressure	Max 500Bar
Cleaning efficiency	2500 square meters/hour
Ground power supply	gasoline/diesel
Pump size	1059095CM
Rated power	4000W
Water pipe material	ultra light nylon high pressure pipe
Pipe length	≥30 meters
Spray rod length	2 meters
Pipe diameter	6mm
