ML200 Matrix Light
Product Introduction
ML200 Matrix Light
The product, in combination with the TK3 Ground Power System, forms a complete high-power lighting load system suitable for various emergency repair and rescue lighting applications. It can meet the long-time operation requirements at night. Featuring a compact, quick-release, quick-assembly, foldable design, it enables rapid deployment and collection for lighting operations.

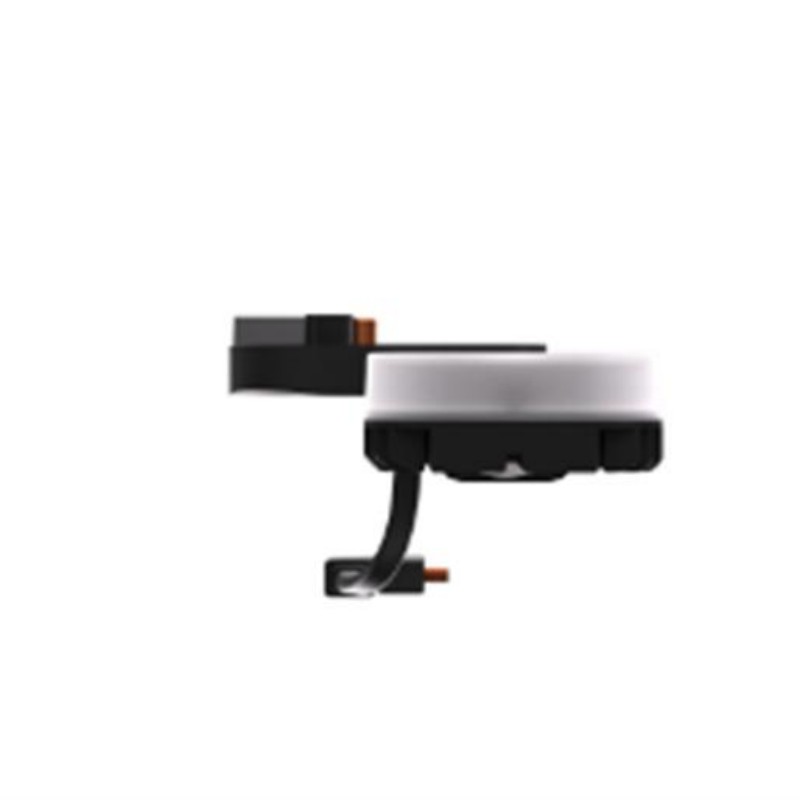

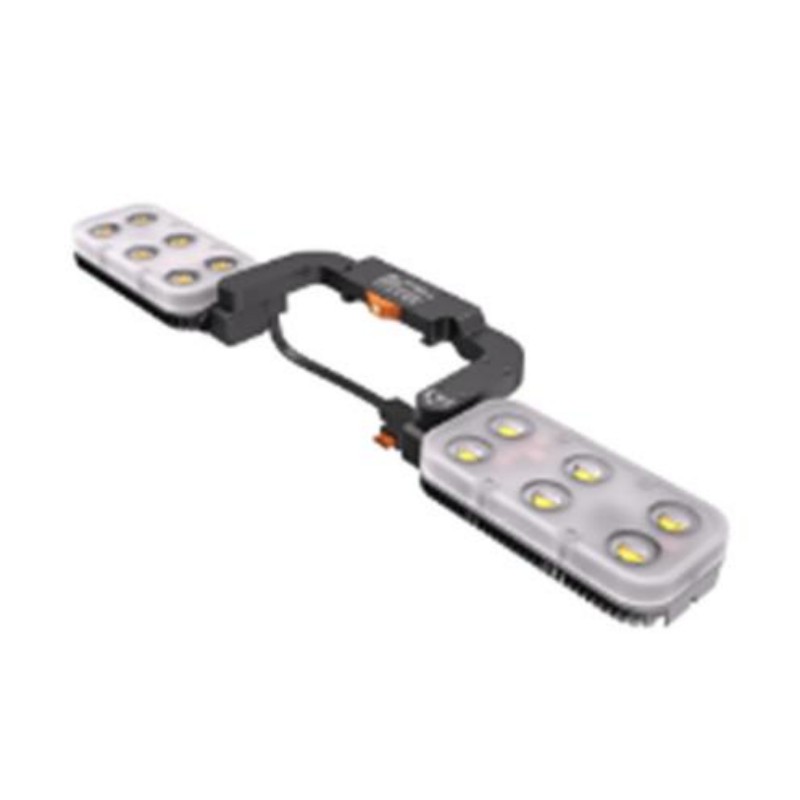

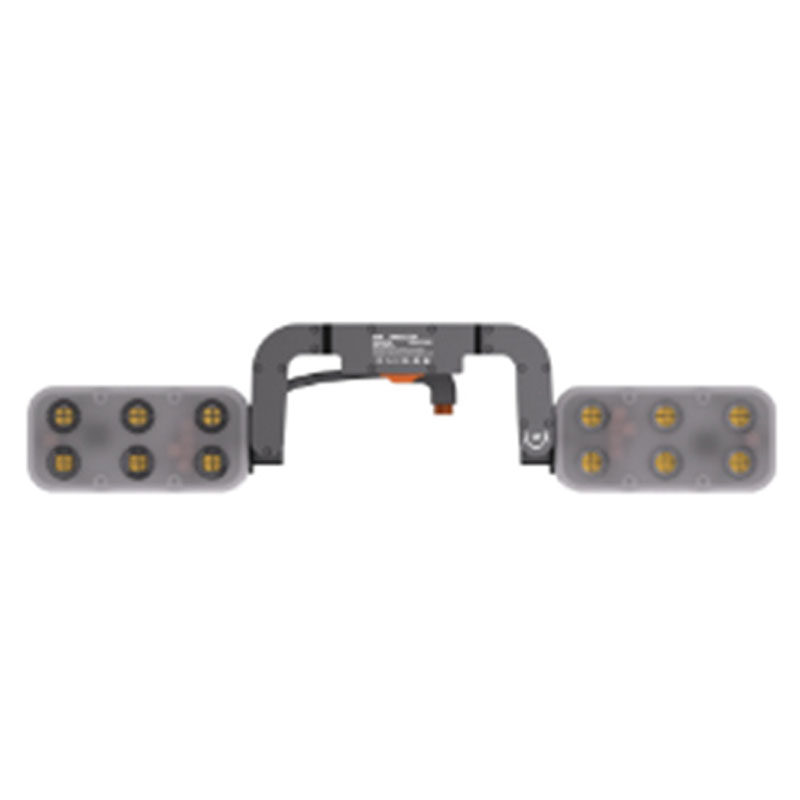

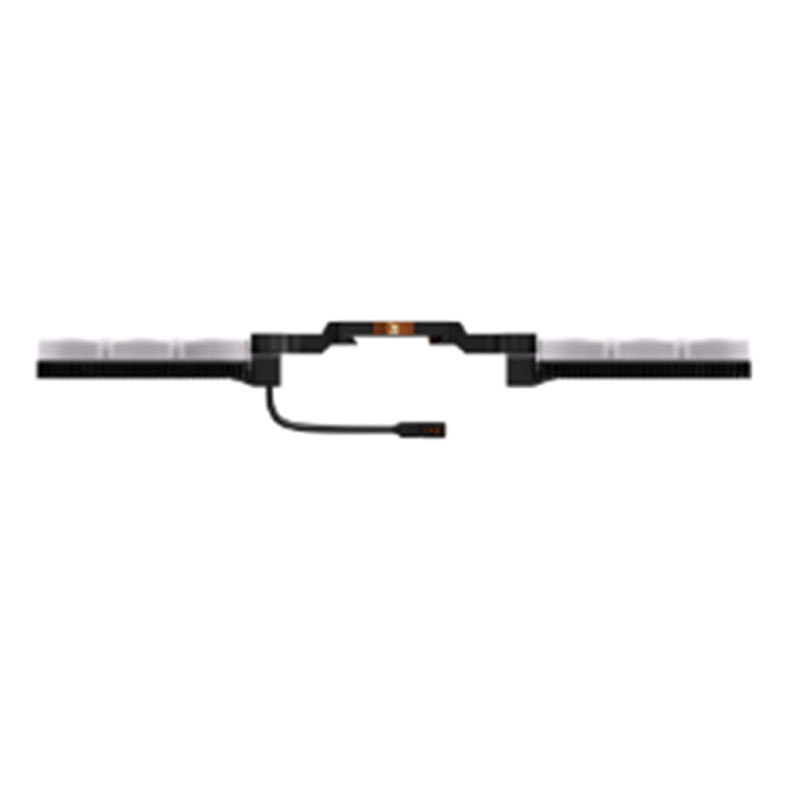

Product images
Specifications
| Model | ML200 |
| Dimensions / mm (Unfolded) | L:406 x W:96 x H:38 |
| Dimensions / mm (folded) | L:285 x W:96 x H:38 |
| Installation method | Fast detachable |
| Longitudinal angle adjustment of the lamp body Three-speed manual | -15°， 0° ，+15° |
| Lateral adjustment of the lamp body Manual two-position | 0° ,+180° |
| Total weight / g | ≤440g |
| Rated voltage / V | 24 |
| Total power / W (ambient temperature: ≤25℃) | 400 ± 10% |
| Total luminous flux / lm (Ambient temperature: ≤25℃) | 42900 ± 10% |
| Luminous efficacy / (lm/W) | 110 |
| FOV /° | 60±3 |
| Illumination distance | 30m |
| Area of the light spot / m² (with 5 lx as the illuminance at the edge of the light spot) | 2000±5% |
| Illuminance at the center of the light spot / lx (ambient temperature: ≤25℃) | 40±5% |
| Protection Class | IP54 |
| Work setting | Temperature: -20°C to +50°C Humidity: 15% to 95% |
| Storage conditions | Temperature: -20°C to +60°C Humidity: 15% to 95% |
